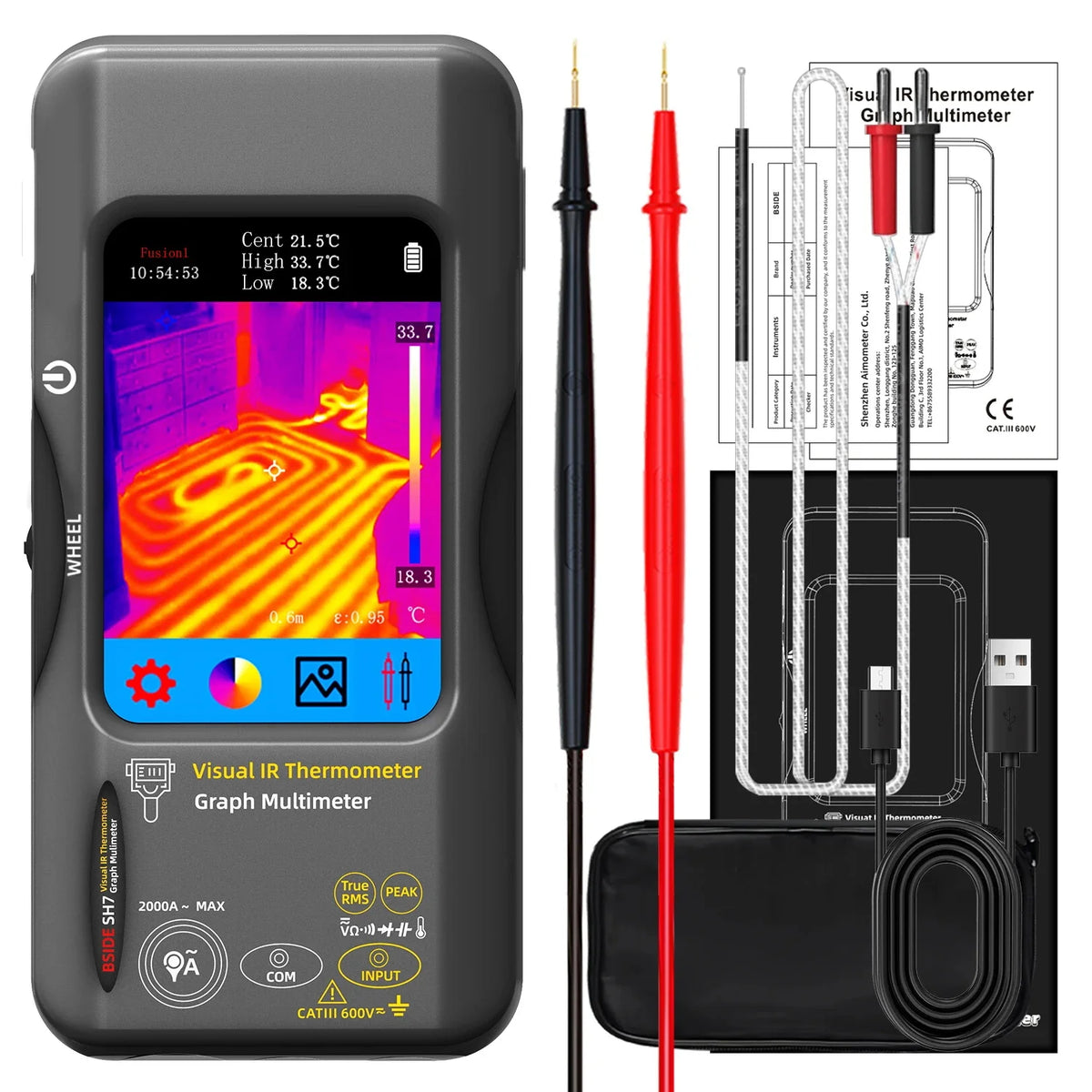

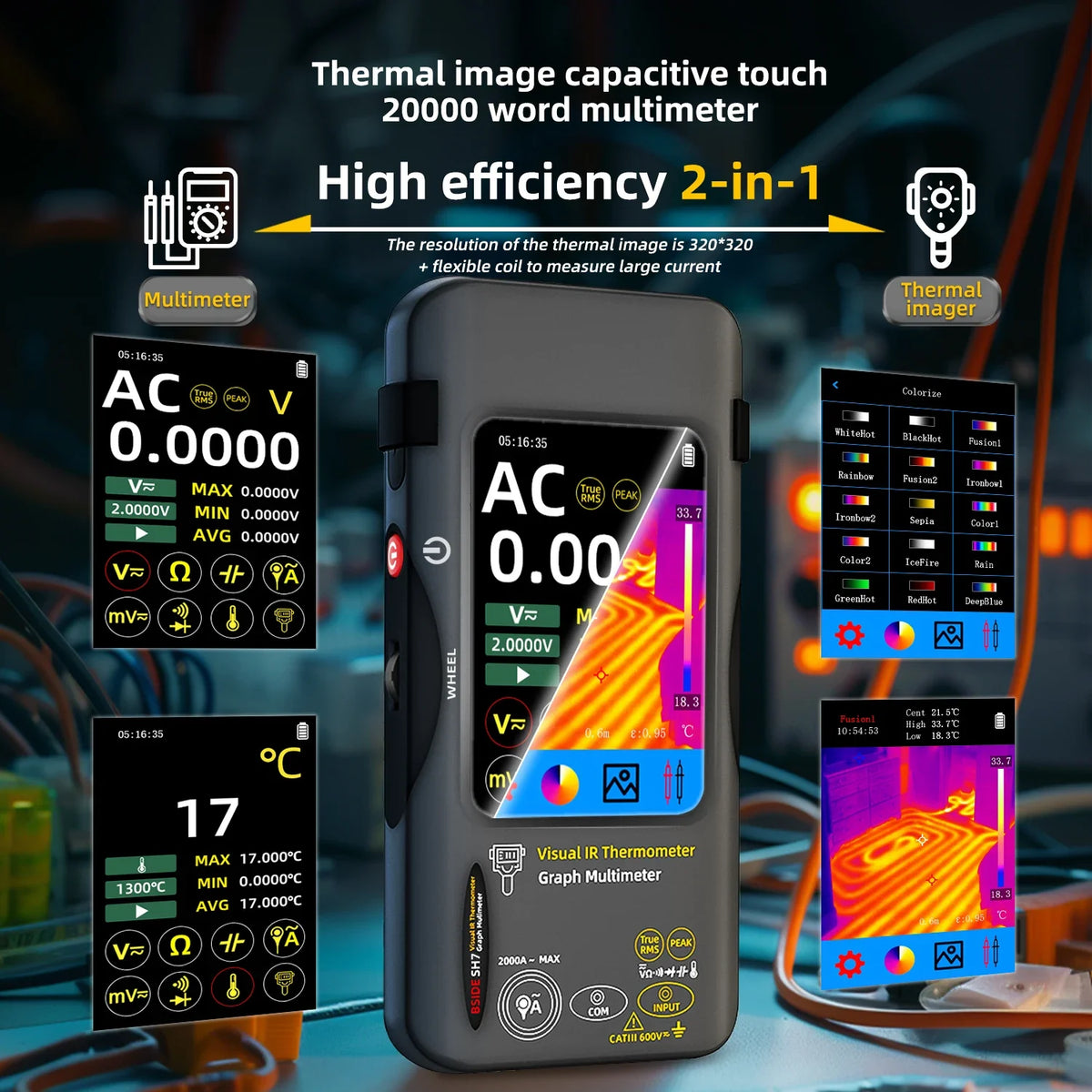

Find heat patterns and check electrical values with one handheld SH7 thermal imager and digital multimeter.
Thermal imaging: A 96 × 96 sensor captures at 25 Hz, with a 320 × 320 display image, a -20°C to +550°C range, and ±2°C or ±2% accuracy.
Multimeter checks: The 20,000-count meter offers manual and automatic ranges for voltage, current, resistance, capacitance, diode, frequency, NCV, and temperature; maximum DC voltage input is 1000V. A flexible coil is required for current measurements up to 2000A.

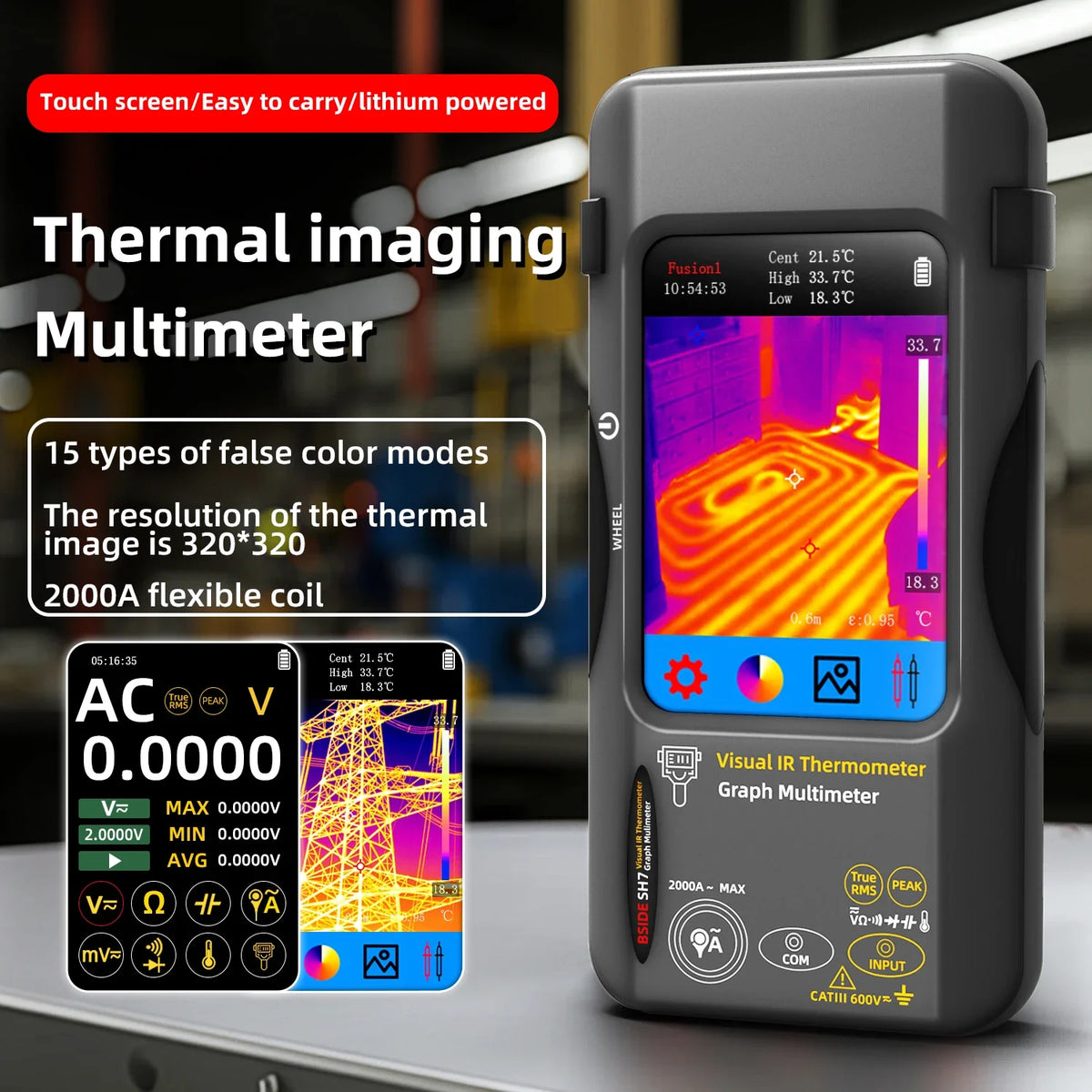

Clear viewing: The 3.98-inch capacitive touchscreen has 320 × 480 resolution and 15 selectable color palettes.

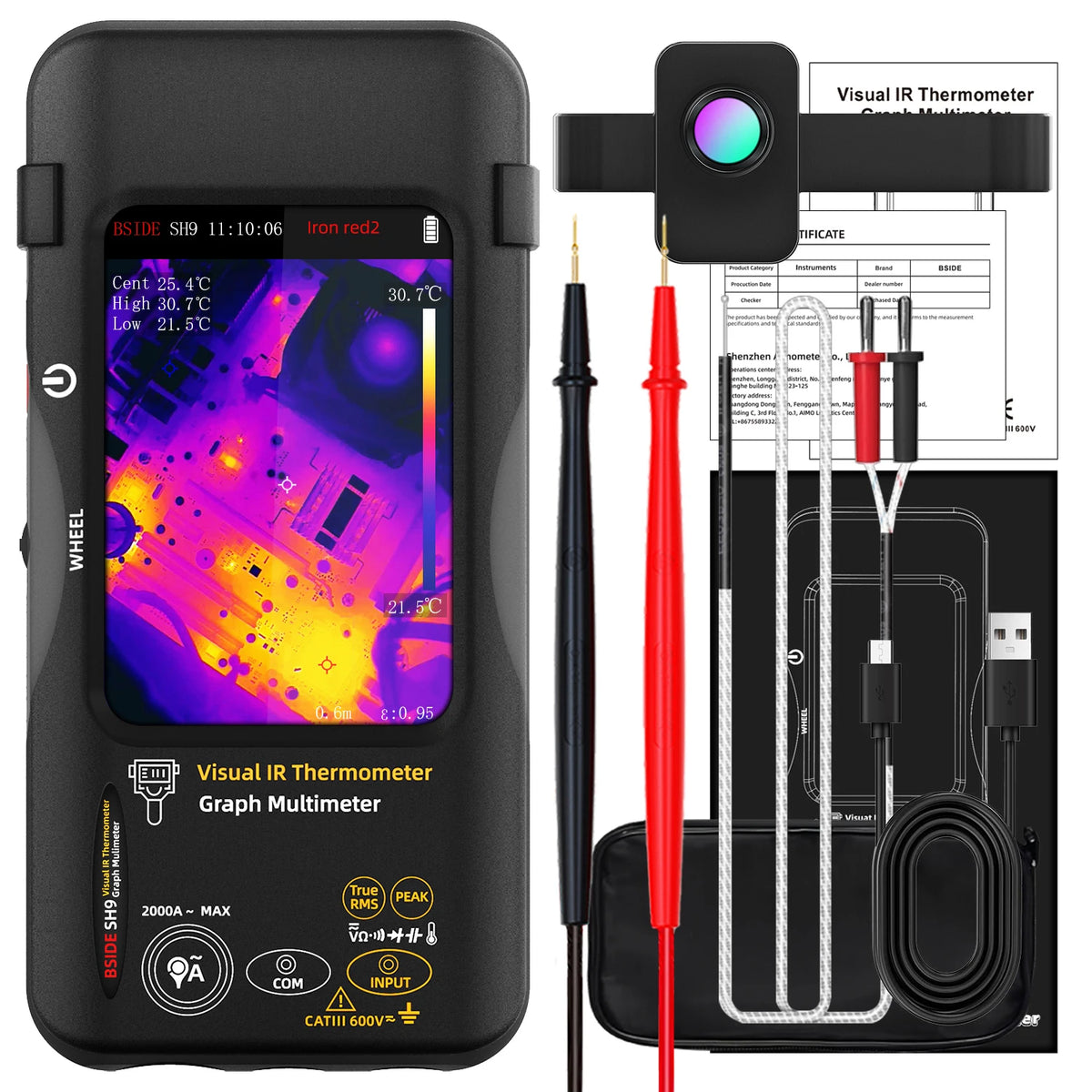

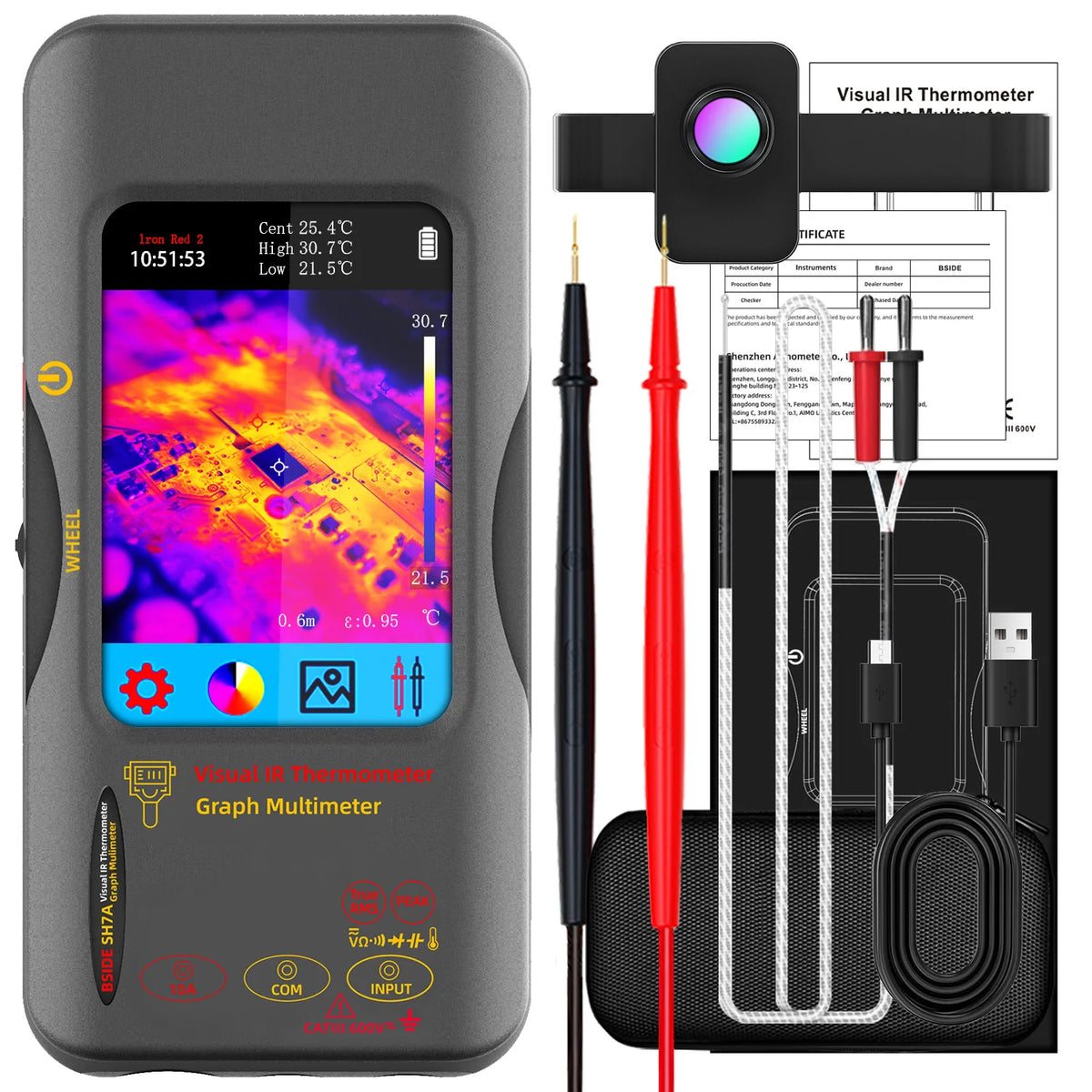

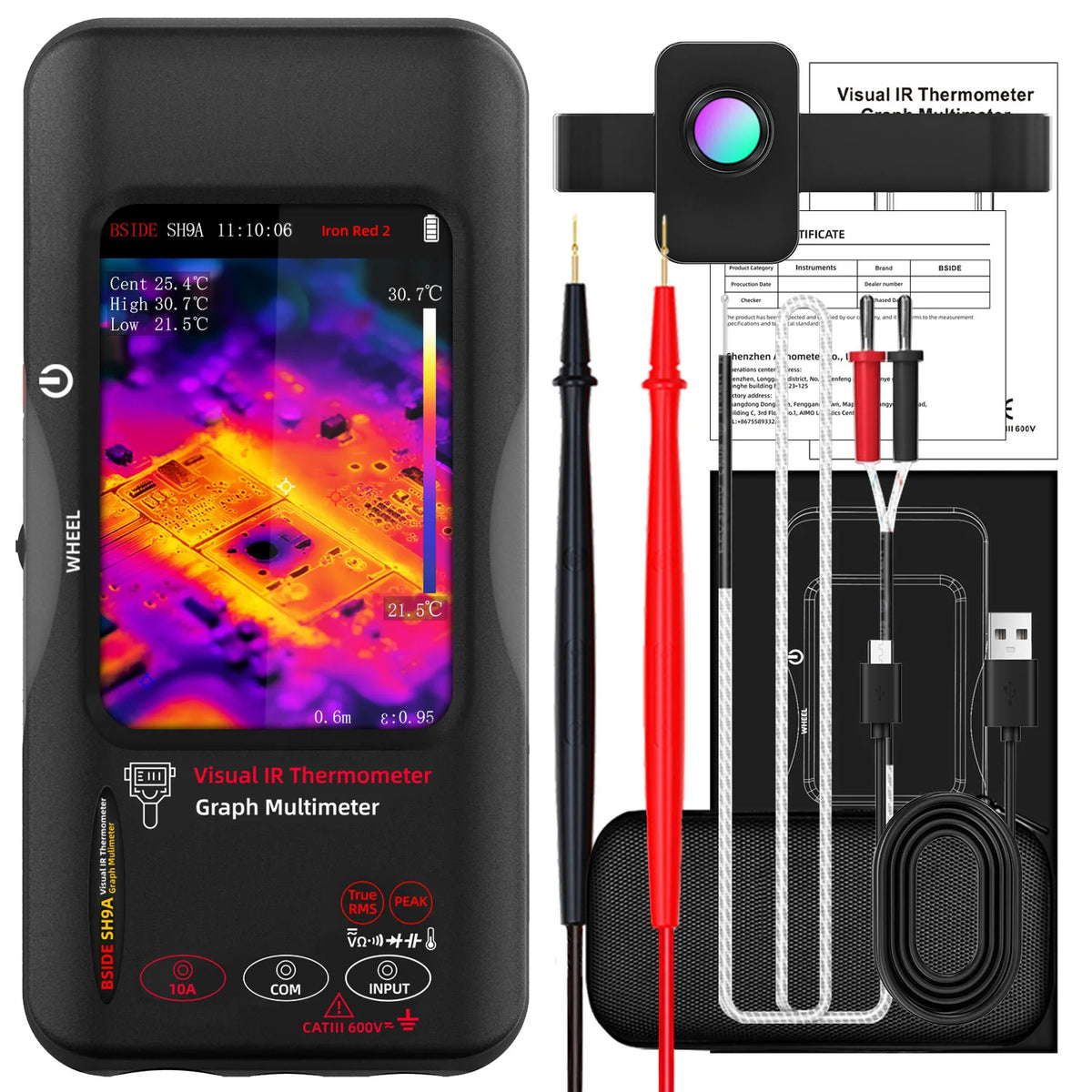

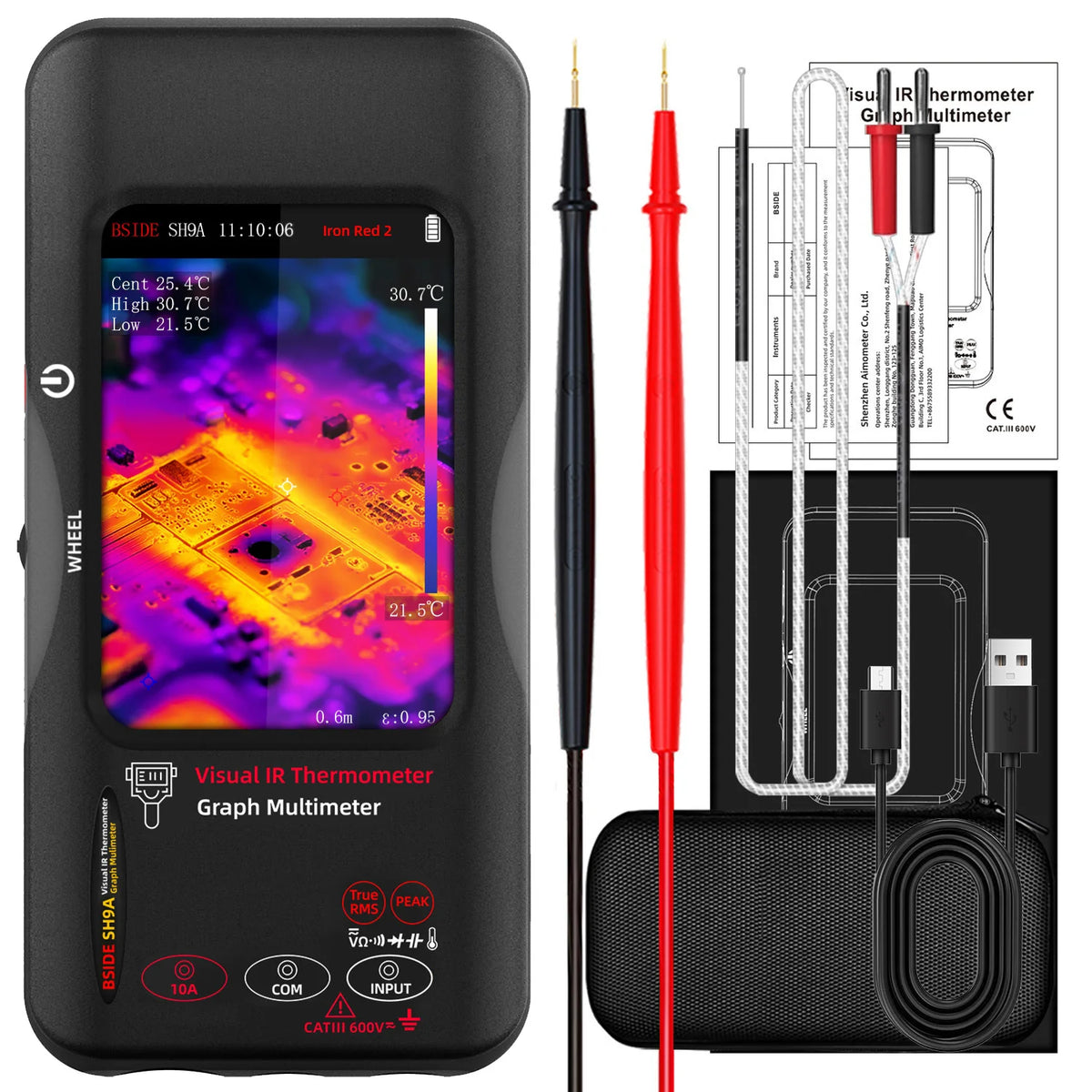

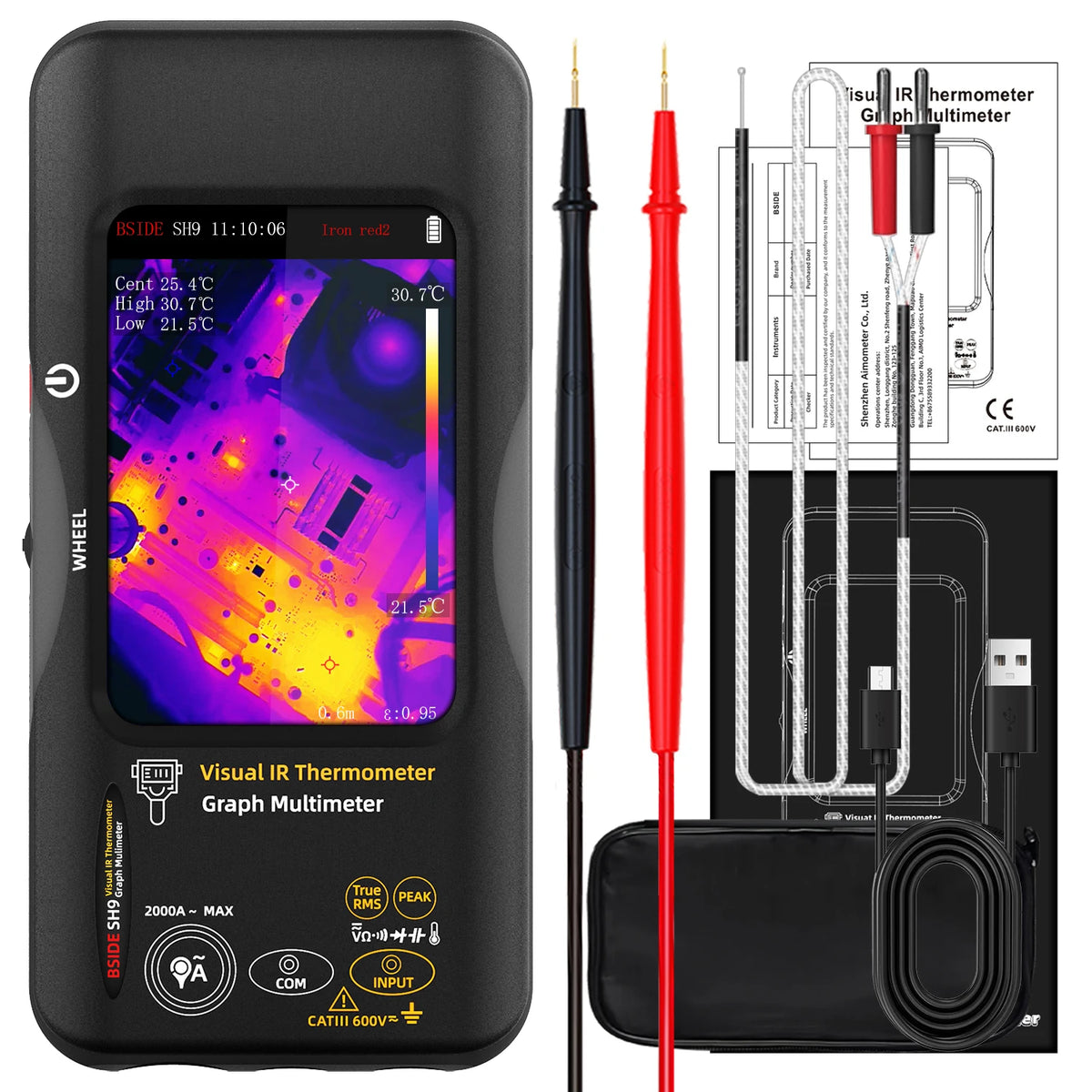

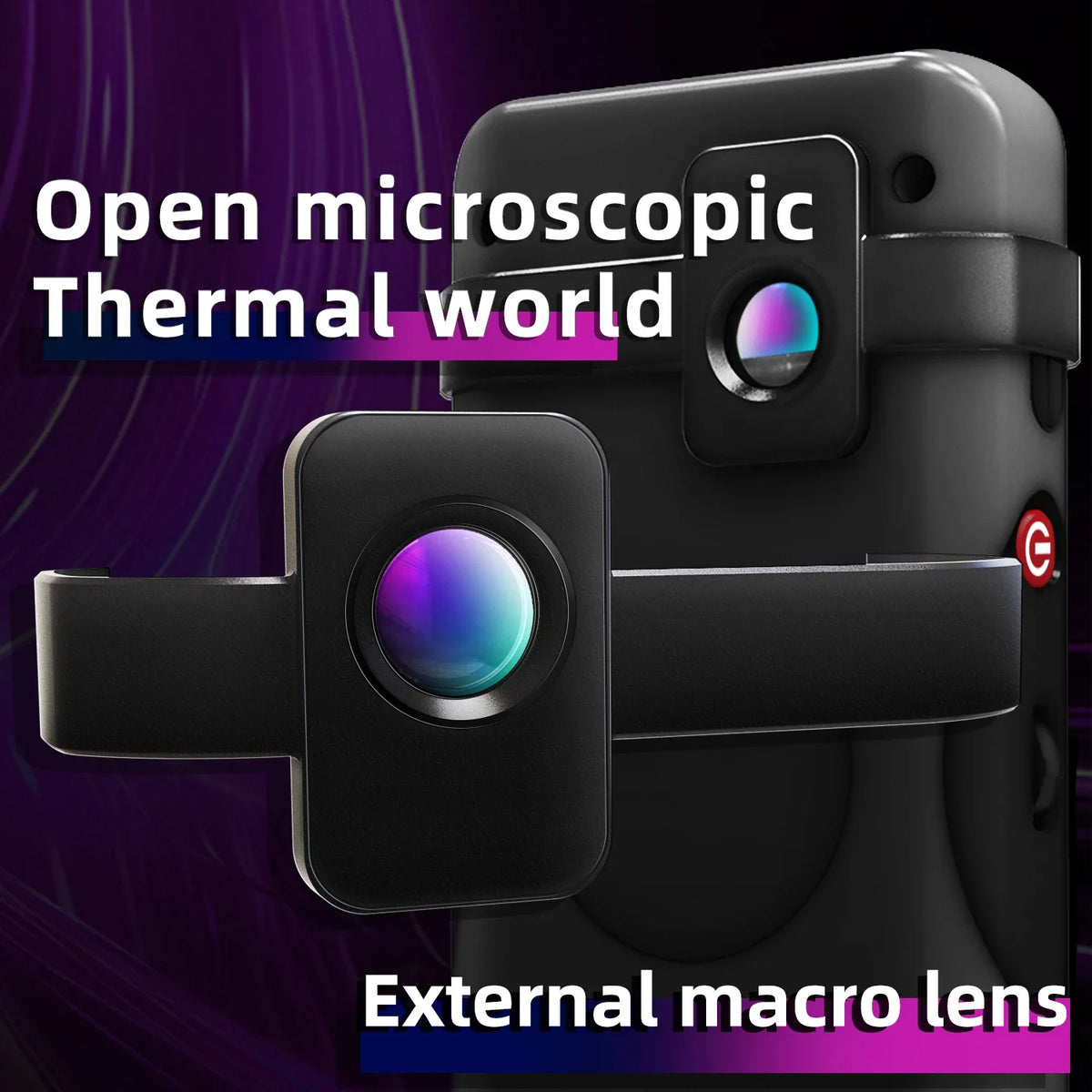

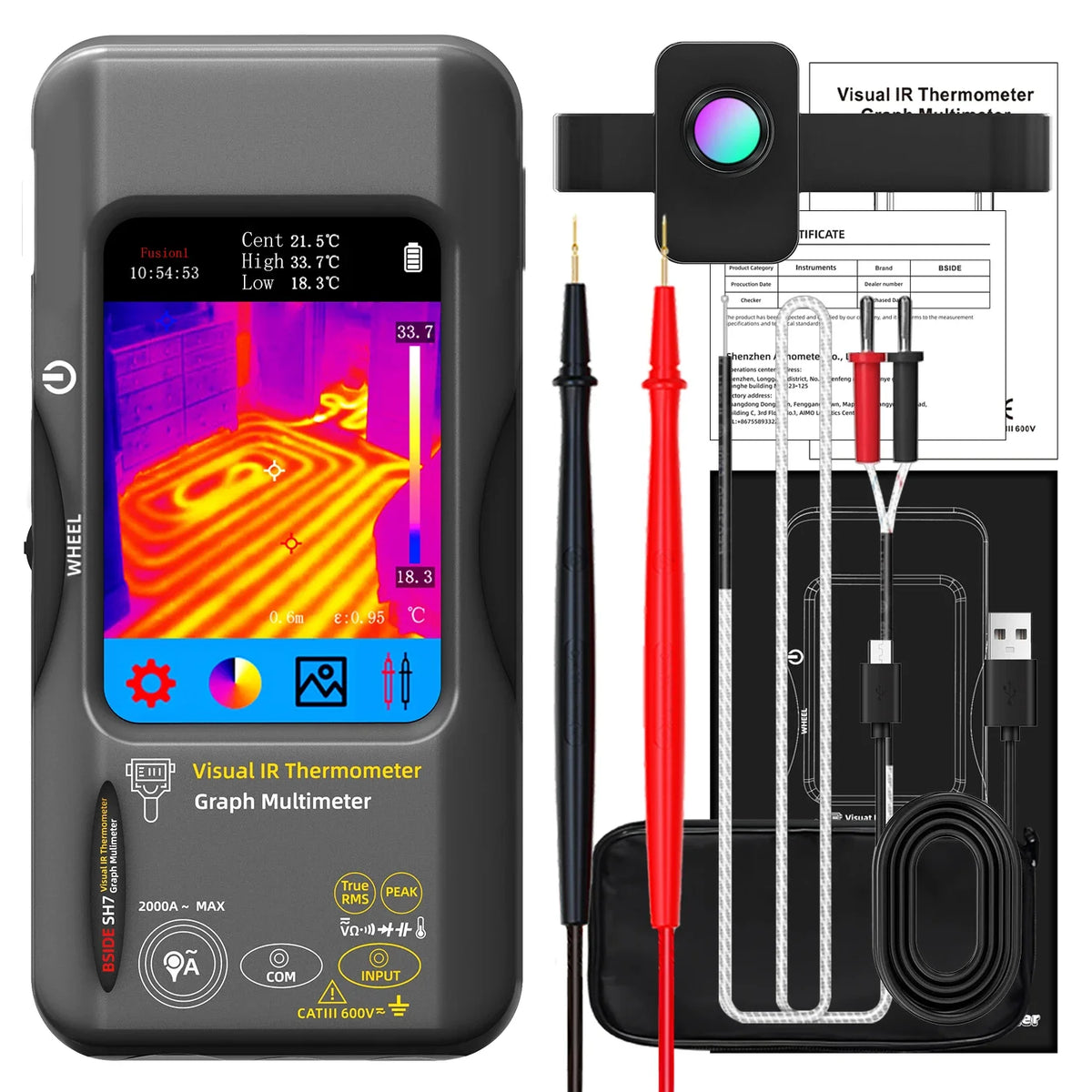

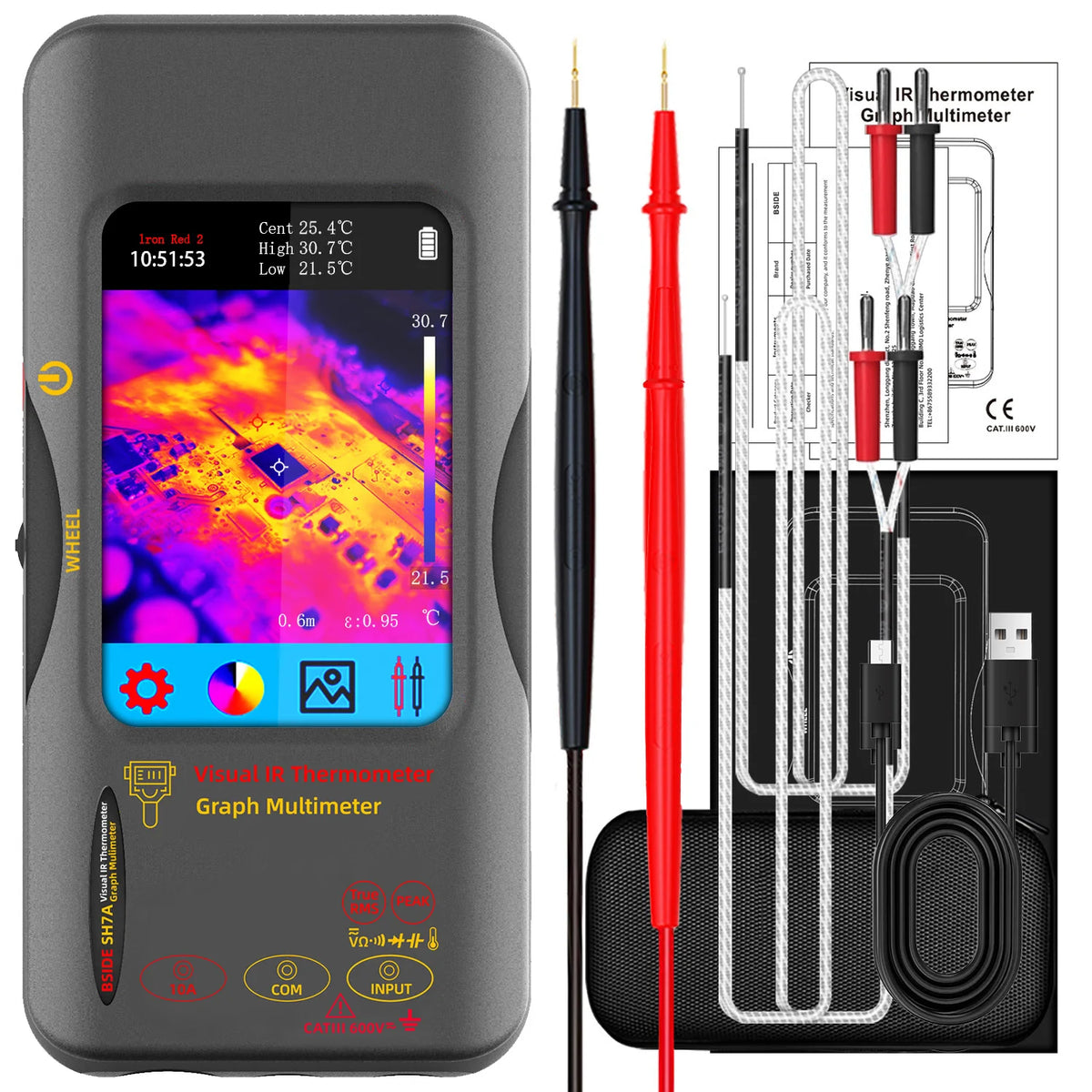

Ready to use: Get up to 8 hours of battery runtime, Type-C charging, PC data analysis support, a 4G TF card, probe, Type K thermocouple, USB cable, storage bag, and warranty card. The optional macro lens helps capture details as small as 1mm × 1mm.
