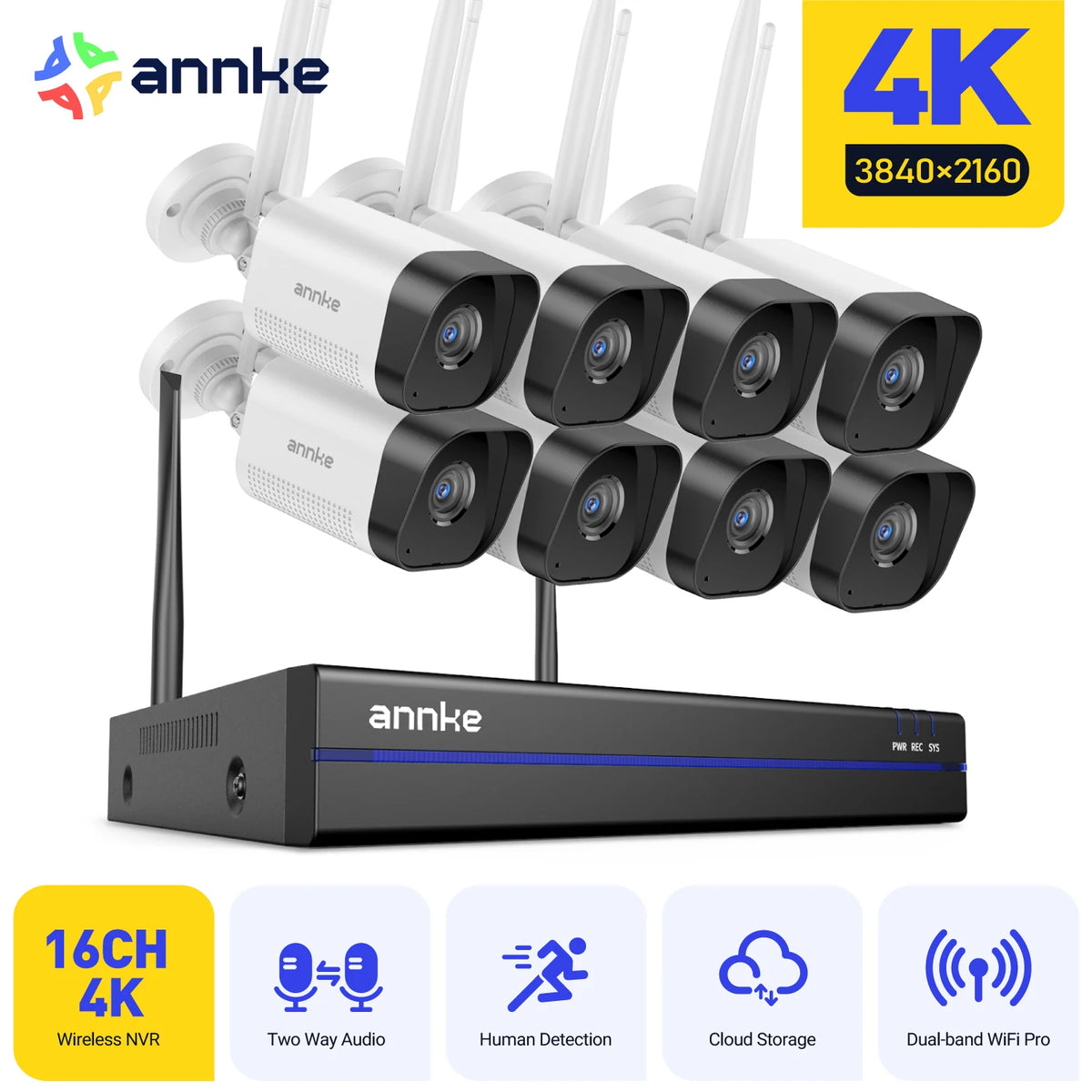

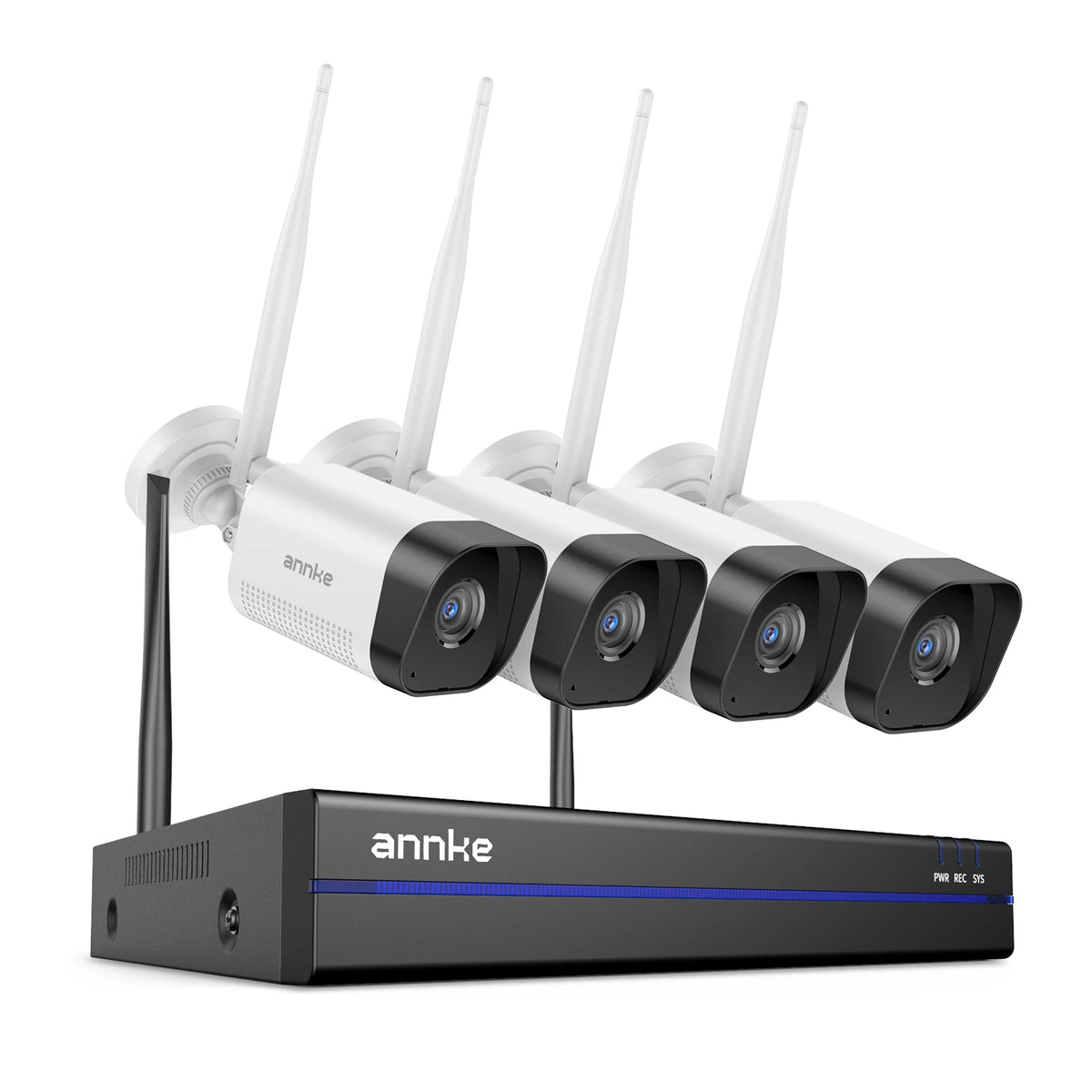

Keep an eye on your home with sharp 8MP footage, wireless cameras, and a recorder built to support up to 16 channels.
-
Clear day and night views: Record and review video at up to 8MP, with infrared night vision reaching up to 100ft (30m).
-

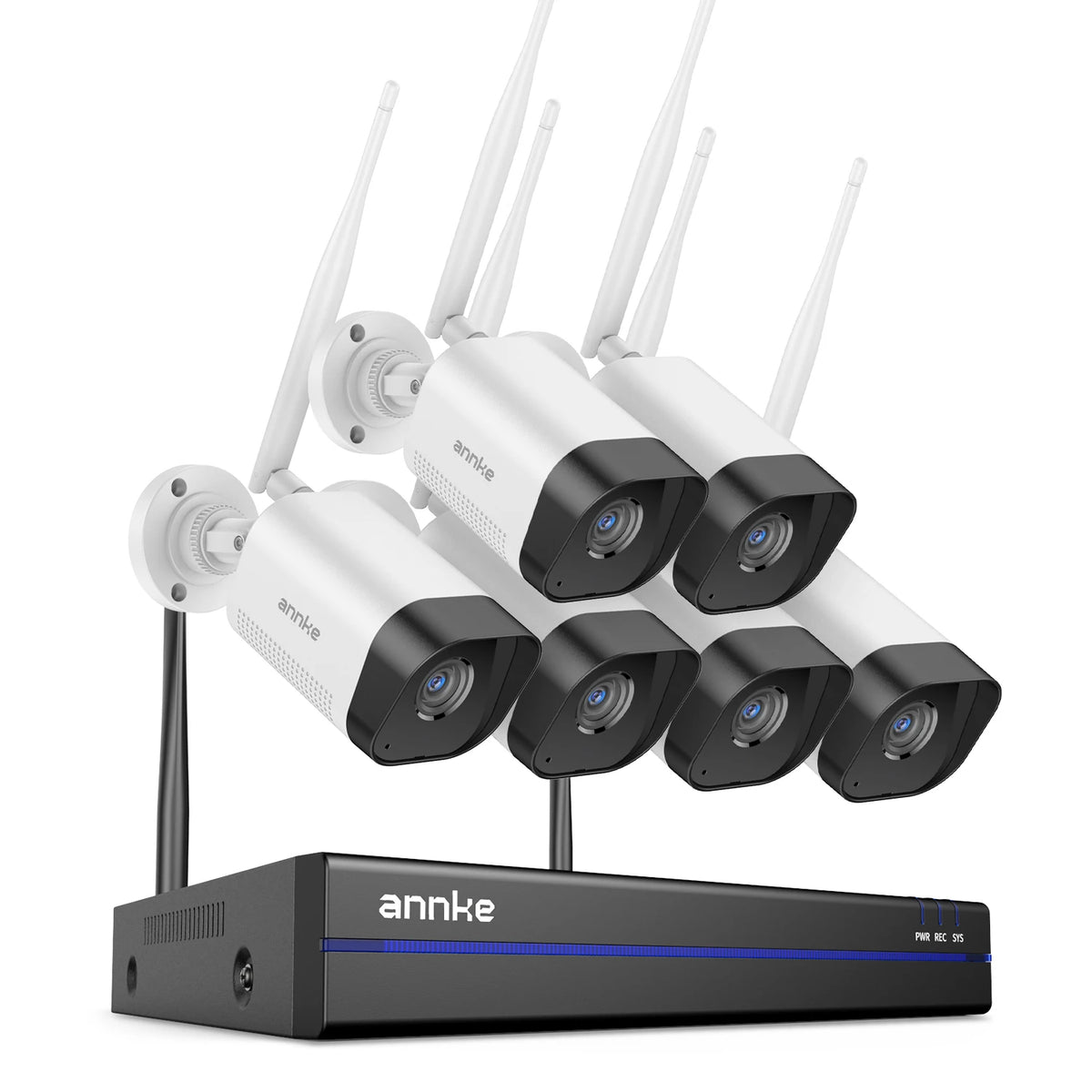

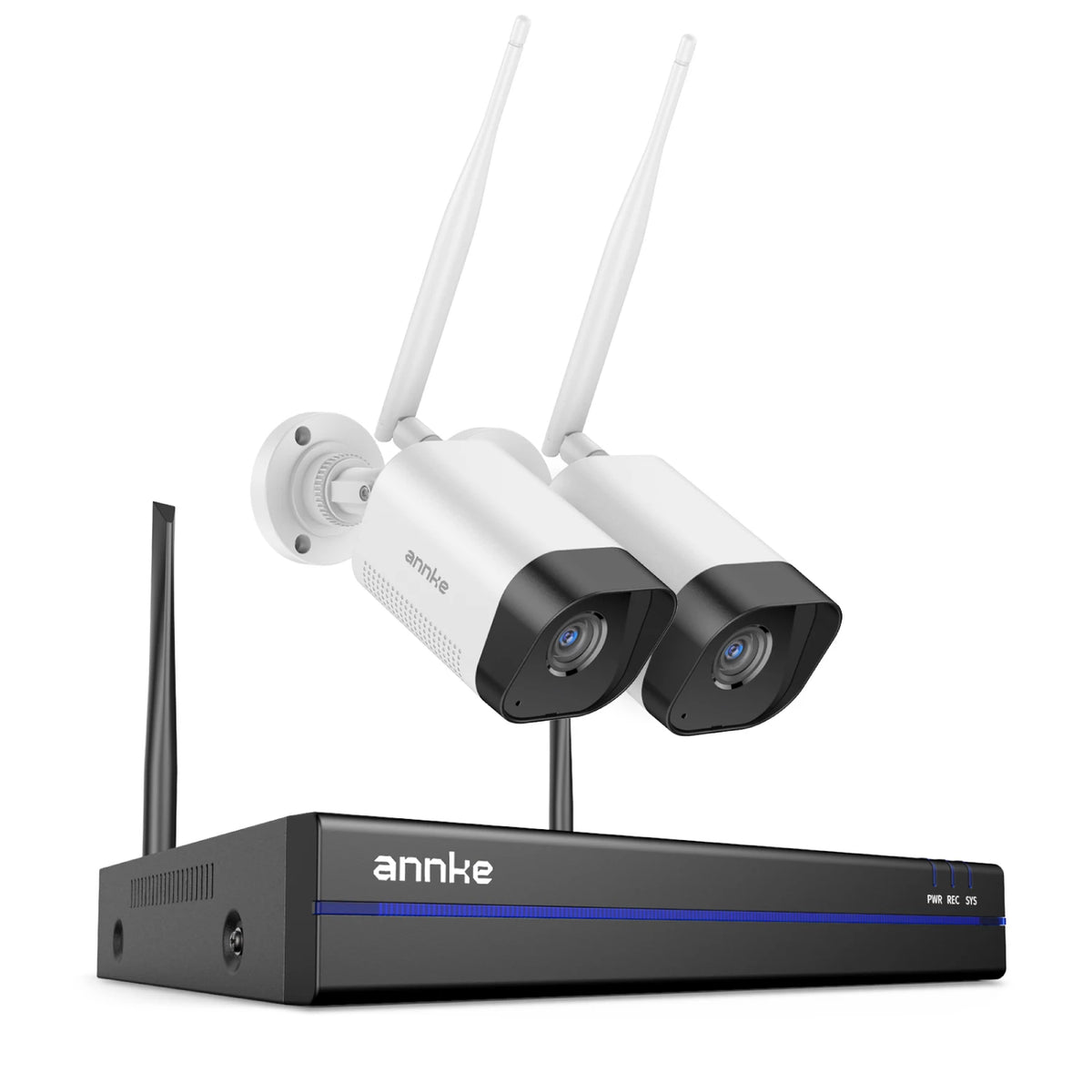

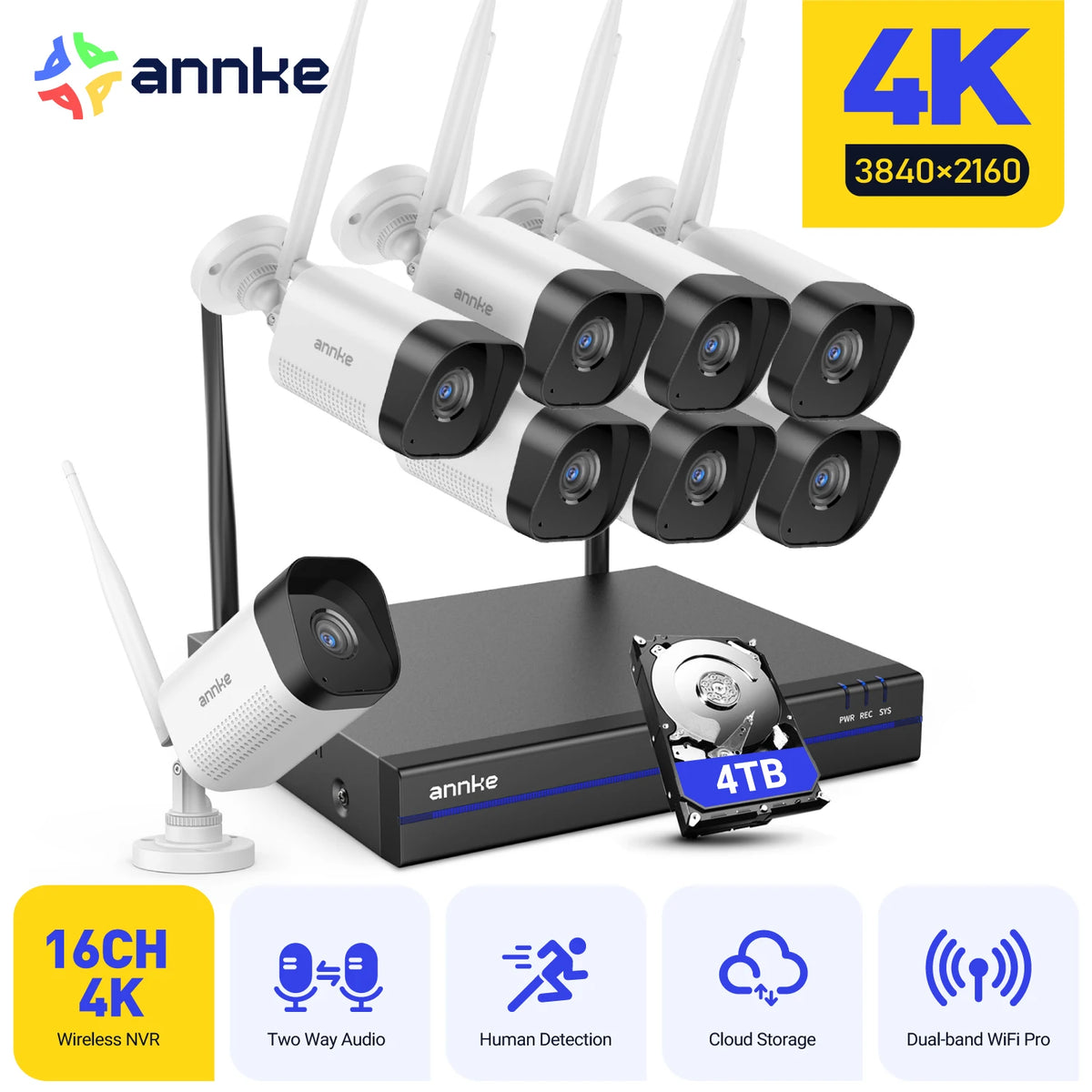

Flexible camera setup: Choose a 2-, 4-, 6-, or 8-camera set; the IP66-rated cameras are suitable for indoor or outdoor use.
-
Stay connected: Dual-band 2.4/5.8GHz Wi-Fi supports wireless monitoring, while the mobile app lets you view your system remotely.
-
Talk and review with ease: Use two-way audio, human detection alerts, and HDMI or VGA outputs; the NVR supports a SATA hard drive up to 8TB.
Camera models may be I91FB or upgraded I91FK, shipped at random; I91FK adds color night vision.
Model Number |
N98WHR+I91FBx4 |
Warranty |
1 Year |
NVR |
|
Video Format |
H.264+ |
IP Video Input |
16CH Wireless |
Video Output |
HDMI Up to 4K |
Audio Output |
Support |
Max Recording Resolution |
Up to 8M |
Max Playback Resolution |
Up to 8M |
Max Playback Channel |
4CH |
Max Playback Capacity |
4CH 5MP/2CH 8MP |
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 8TB capacity(2.5&3.5 inches) |
External Interface
|
Network Interface |
RJ45x1(10/100M) |
Wireless antenna |
3 Ports(2.4G&5.8G dual-band，IEEE802.11b/g/n/ac) |
USB |
USB2.0x2 |
General |
Housing |
Metal for mainpart |
Operating Power |
DC12V |
Power Consumption |
6 W (Without HDD) |
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
Dimensions (W X H X D) |
260 X 245 X 47 mm |
Weight (Without Hard Disk) |
760 g (Without HDD) |
IP Camera |
Camera |
Video Resolution |
8MP (3840 X 2160) |
Image Sensor |
1/2.7" Progressive Scan CMOS |
Video Compression |
H.264+ |
Audio Compression |
G.711A |
Lens |
3.6mm |
Angle of View |
70° |
Number of Infra-Red LEDs |
18 |
Night Vision Distance |
Up to 100ft/30m |
IR-Cut Filter |
Yes |
Ethernet |
RJ45x1(10M/100M) |
Wireless |
2.4G&5.8G dual-band，IEEE802.11b/g/n/ac |
General |
Housing |
Plastic for Main Part |
Operating Power |
DC12V |
Operating Temperature |
-4 °F – 140 °F/-20 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |
Weatherproof Rating |
IP66 |
Dimension (L X W X H) |
|
Weight |
|
