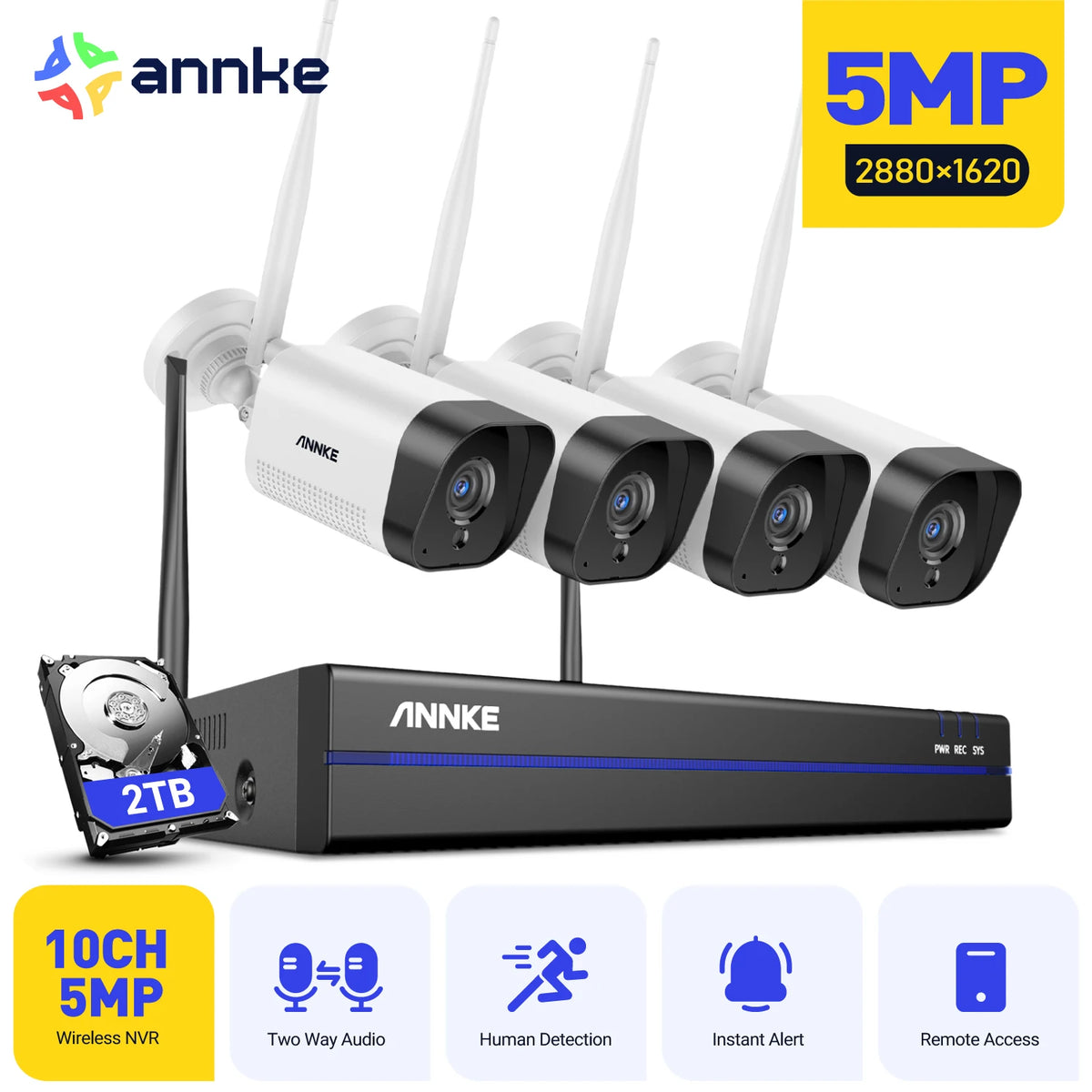

Keep an eye on your space with four wireless 5MP cameras, two-way audio, and mobile monitoring in one security system.
-

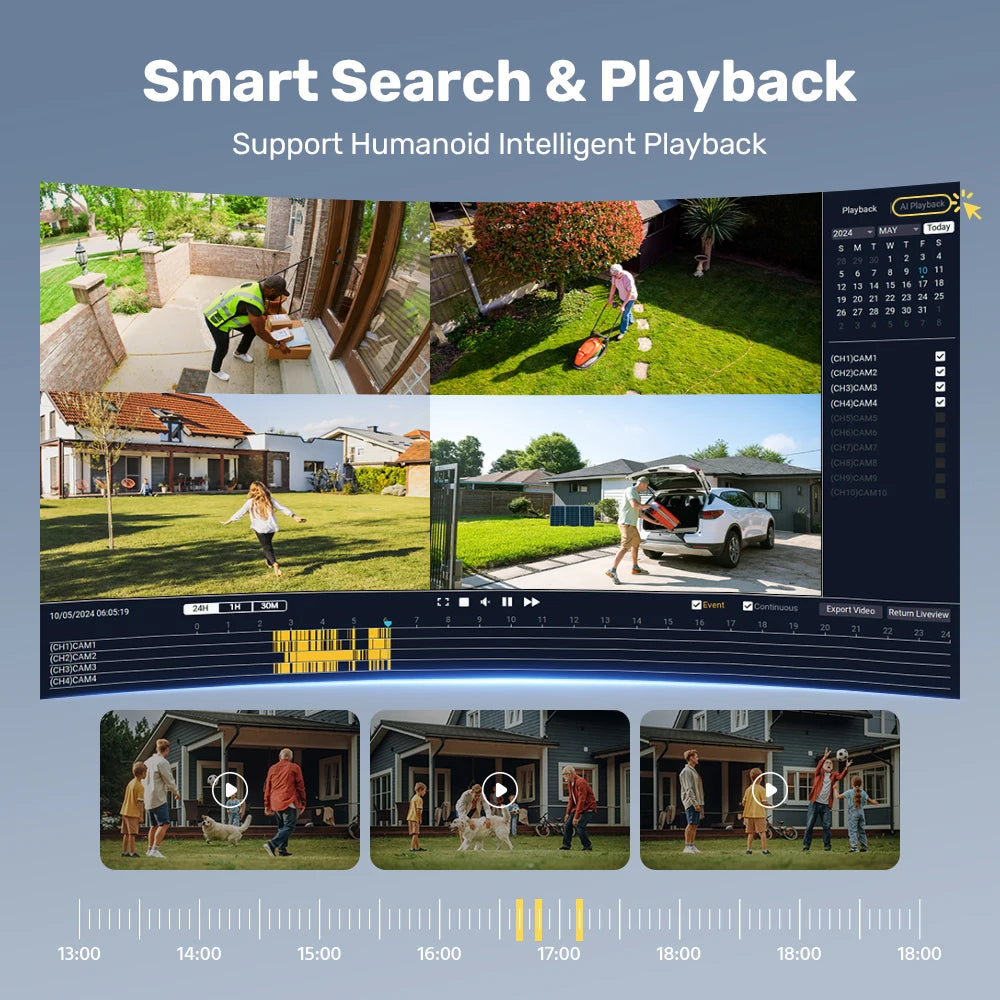

Sharp video: View, record, and play back footage at resolutions up to 5MP, with H.264+ compression.
-
Talk and listen: Use each camera’s built-in microphone and speaker for two-way voice communication.
-
Day and night coverage: Smart IR night vision reaches up to 100 ft (30 m), while IP66-rated cameras suit indoor and outdoor use.
-

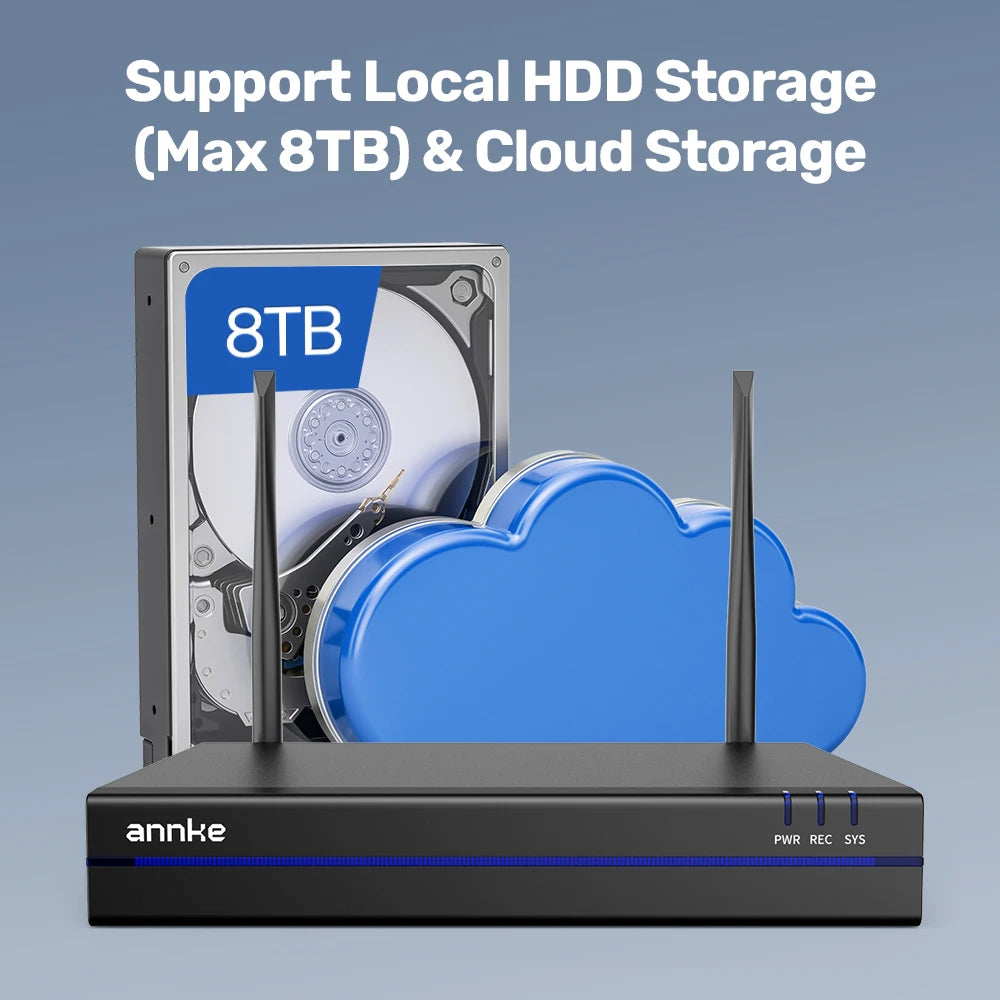

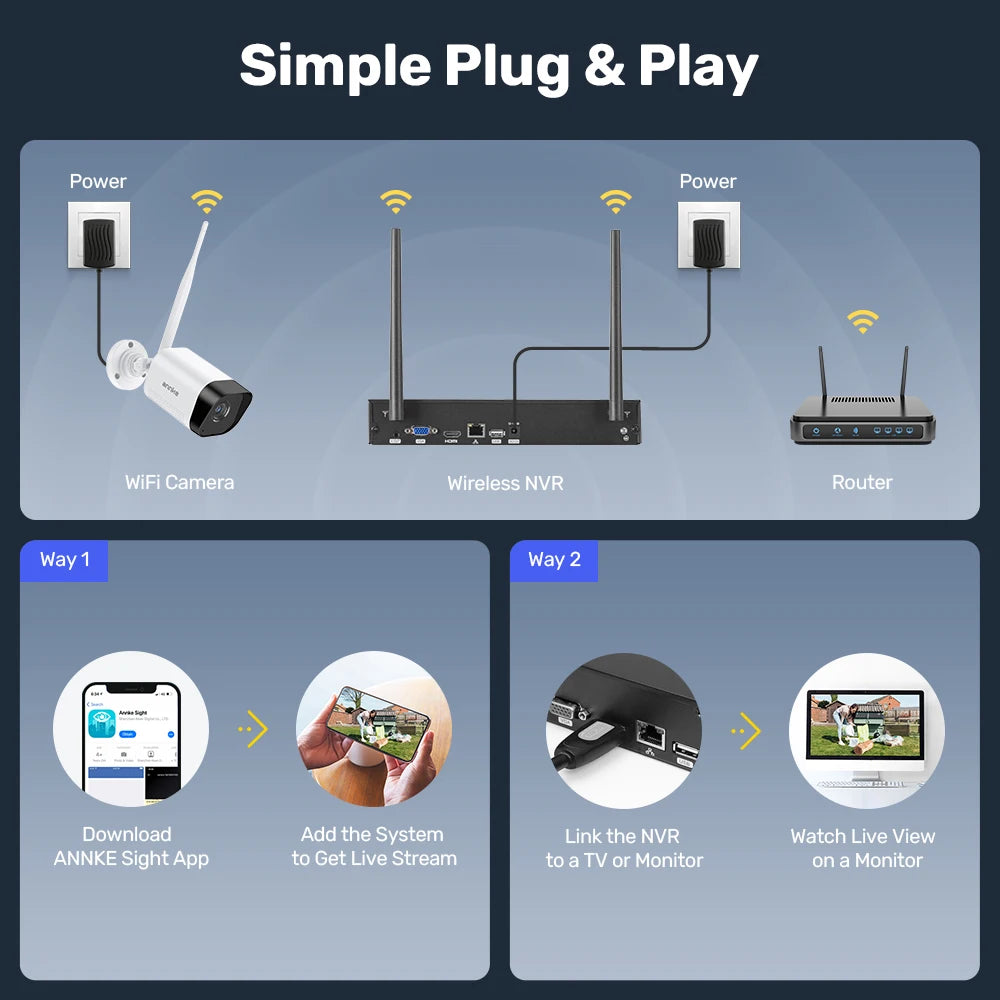

Flexible monitoring: Get motion-detection email alerts, connect a TV or monitor through HDMI or VGA, and use the app for mobile viewing; the NVR supports up to 10 wireless cameras and a SATA hard drive up to 10TB.
NVR |
|
Video Format |
H.264+ |
IP Video Input |
10CH Wireless |
Video Output |
HDMI and VGA Up to 1080P |
Audio Output |
Support |
Max Recording Resolution |
Up to 5M |
Max Playback Resolution |
Up to 5M |
Max Playback Channel |
4CH |
Max Playback Capacity |
4CH 3MP/2CH 5MP |
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity(3.5 inches) |
External Interface
|
Network Interface |
RJ45x1(10/100M) |
Wireless antenna |
2 Ports(IEEE802.11b/g/n) |
USB |
USB2.0x1 |
General |
Housing |
Metal for mainpart |
Operating Power |
DC12V |
Power Consumption |
6 W (Without HDD) |
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
Dimensions (W X H X D) |
260 X 245 X 47 mm |
Weight (Without Hard Disk) |
760 g (Without HDD) |
IP Camera |
Camera |
Video Resolution |
5MP (2880 X 1624) |
Image Sensor |
1/2.8" Progressive Scan CMOS |
Video Compression |
H.264+ |
Audio Compression |
G.711A |
Lens |
3.6mm |
Angle of View |
70° |
Number of Infra-Red LEDs |
18 |
Night Vision Distance |
Up to 100ft/30m |
IR-Cut Filter |
Yes |
Ethernet |
RJ45x1(10M/100M) |
Wireless |
IEEE802.11b/g/n |
General |
Housing |
Plastic for Main Part |
Operating Power |
DC12V |
Operating Temperature |
-4 °F – 140 °F/-20 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |
Weatherproof Rating |
IP66 |
Dimension (L X W X H) |
|
Weight |
|
